Low Voltage Distribution Panels are essential in solar photovoltaic (PV) systems, particularly in commercial and industrial setups where solar arrays operate at voltages up to 800V DC. These panels serve as the interface between solar modules and the inverter, managing the flow of electricity, protecting equipment, and ensuring operational safety.

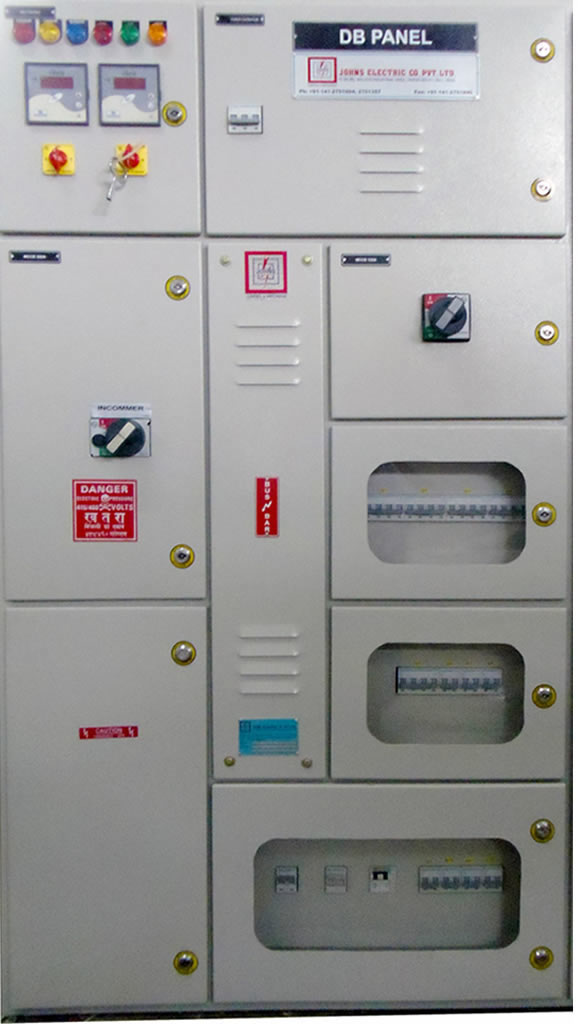

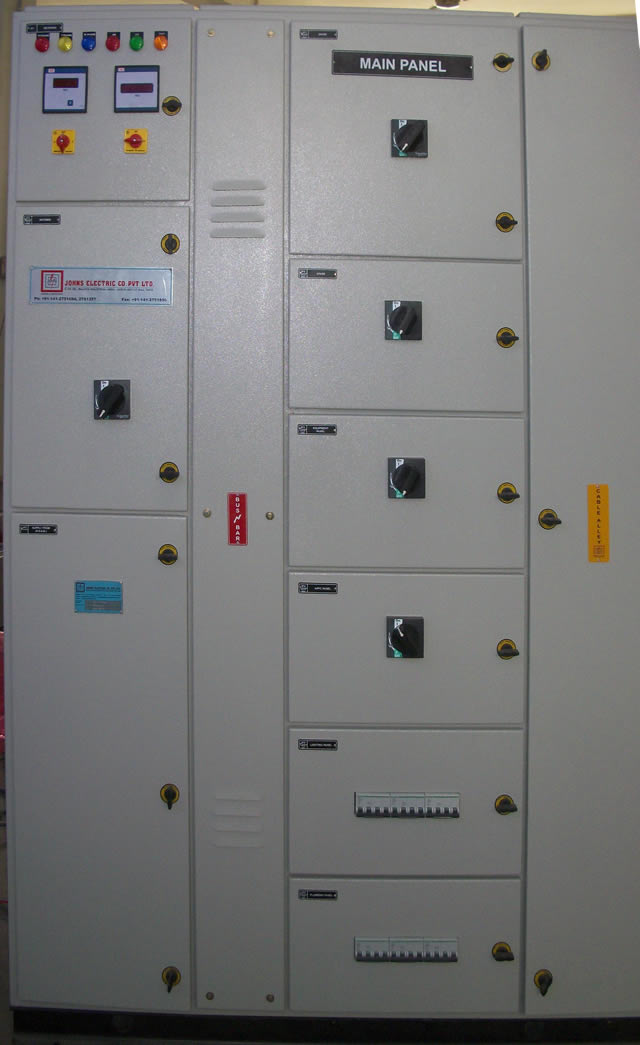

Johns Electric's 800V Low Voltage Panel is engineered to meet the demands of modern solar installations, offering high performance, durability, and compliance with international standards.
Applications
- Commercial Solar Plants: Ideal for rooftop and ground-mounted solar installations.
- Industrial Facilities: Supports solar integration in factories and warehouses.
- Utility-Scale Projects: Suitable for solar farms with centralized inverter systems.
- Hybrid Energy Systems: Can be integrated with battery storage and grid-tied systems.
Key Features
- Voltage Rating: Designed for 800V DC applications, suitable for largescale solar PV systems.
- Modular Design: Allows easy customization and scalability based on project requirements.
- Protection Devices: Integrated with surge protection devices (SPDs), DC isolators, and circuit breakers to safeguard against faults.
- High-Quality Components: Uses premium-grade copper busbars, flameretardant enclosures, and ABB or equivalent branded breakers.
- Weatherproof Enclosure: IP65-rated outdoor kiosk design ensures protection against dust, water, and environmental stress.
- Thermal Management: Equipped with ventilation and heat dissipation mechanisms to maintain optimal operating temperatures.
- Construction: The enclosure is completely assembled in CRCA SHEET 14 SWG (2 mm) Panel Structure and 16 SWG (1.6 mm ) Doors/Cover and 10 swg (3 mm) gland plate
Unique Specifications and Advantages
- Totally customised product
- High mechanical strength and ensured coated with pure poly urethane.
- Highest quality standards for every material used in the panel.
- Strictly follow ISO 9001-2008.
- Make of the switchgear as per customer choice
- Compartmentalised/ Non-Compartmentalised panel.
- All doors will be suitably labelled and marked for convenience of operation & maintenance.
- Ample space is provided for cable termination.
