Medium Voltage Panels

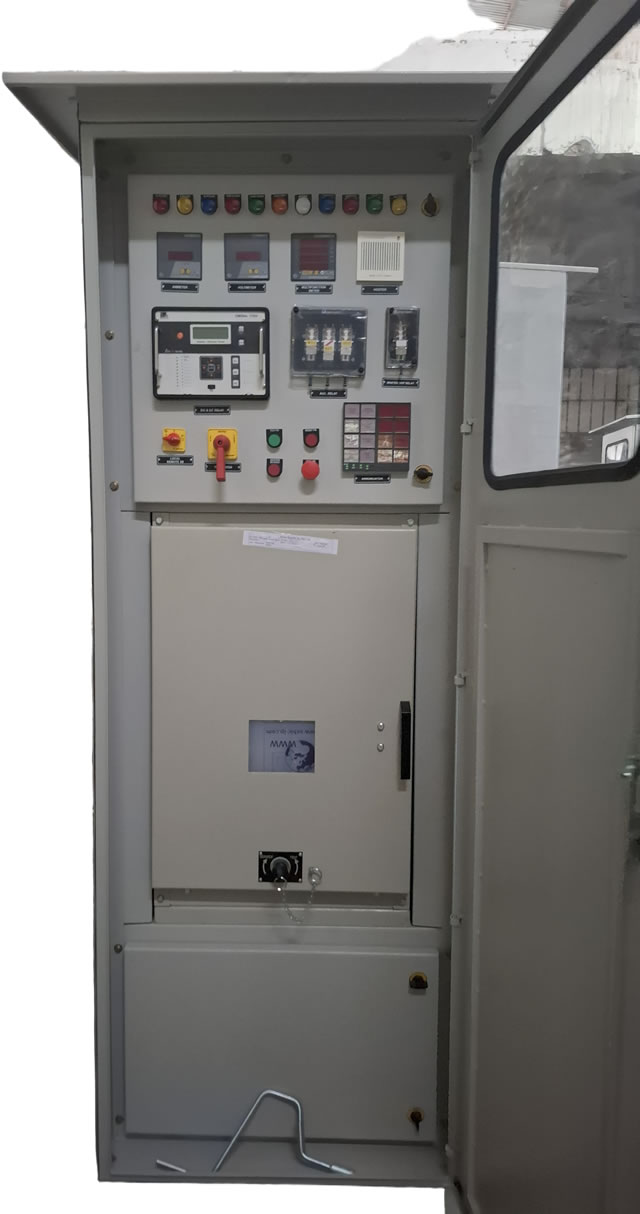

The IP55 Outdoor VCB Panel is used for reliable medium-voltage switching, protection, and isolation in outdoor power distribution systems. It ensures safe interruption of fault currents and controlled switching operations, making it ideal for power evacuation, transformer protection, and maintenance activities in solar plants, renewable energy plants, substations, and utility networks.

The Outdoor VCB Panels with ABB VD4 Breaker are engineered to deliver high performance, safety, and durability for demanding outdoor applications across industrial, commercial, utility, and renewable energy sectors. These panels are designed to operate efficiently in medium-voltage distribution networks, ensuring uninterrupted power flow and dependable fault protection.

1. Solar and renewable energy power plants evacuation systems
2. Utility substations and distribution networks
3. Industrial plants (steel, cement, chemical, manufacturing)
4. Commercial complexes, malls, and IT parks
5. Infrastructure projects: airports, railways, and metro systems

The panel offers proven ABB breaker reliability, robust performance in harsh outdoor environments, and enhanced operator safety. Its low-maintenance design, long operational life, and readiness for modern digital power systems make it a costeffective and future-proof solution for medium-voltage applications.

• Voltage Rating: 3.3 kV / 6.6 kV / 11 kV / 33 kV
• Circuit Breaker: ABB VD4 Vacuum Circuit Breaker rated upto 10,000 operations
• Panel Type: Outdoor, heavy-duty CRCA steel metal-enclosed rated IP55 or higher
• Construction: CRCA enclosure with powder coating for enhanced durability.
• Protection Class: IP55 or higher, ensuring protection against dust and water ingress.
• Safety: Advanced protection with electrical and mechanical interlocks
• Smart Features (Optional): IoT-ready, smart grid compatible, energy analytics support
